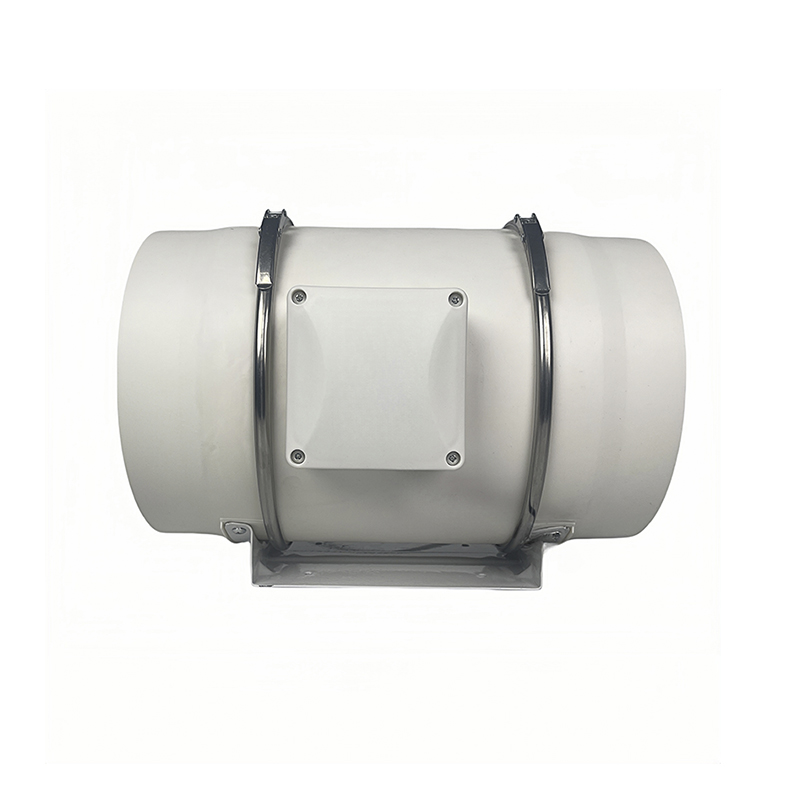

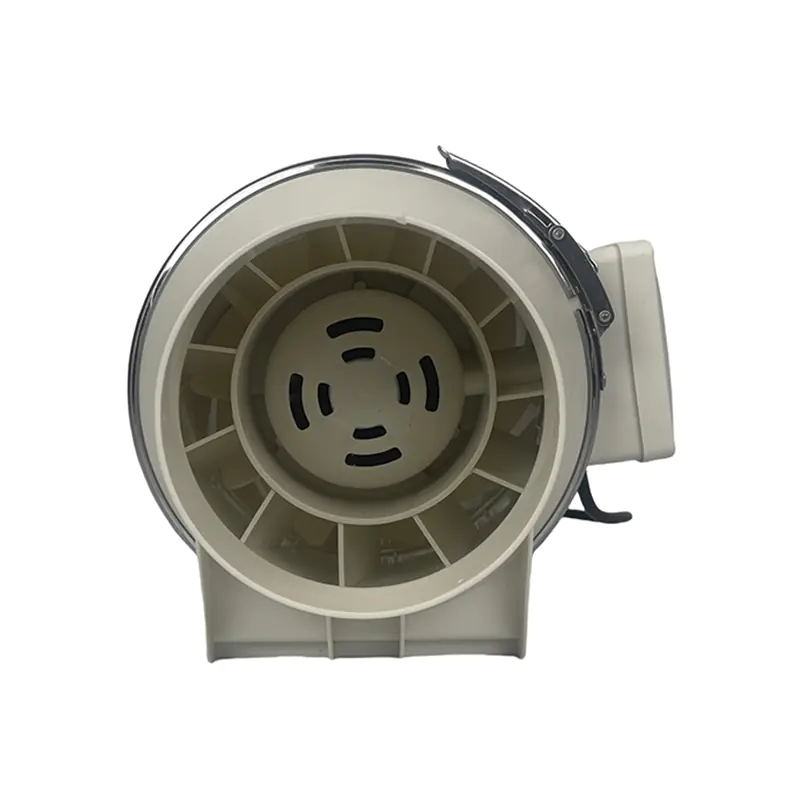

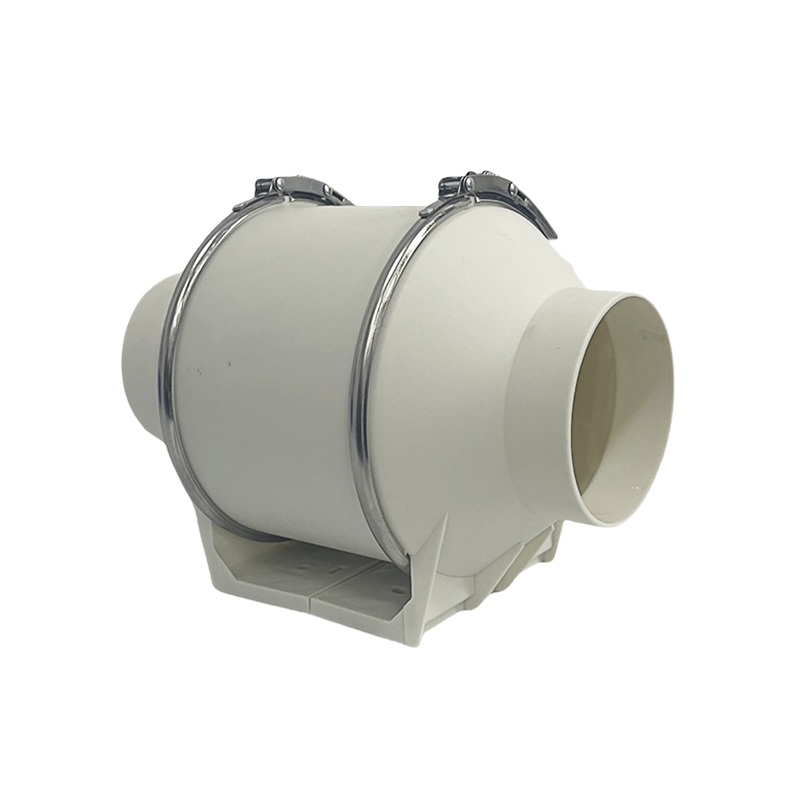

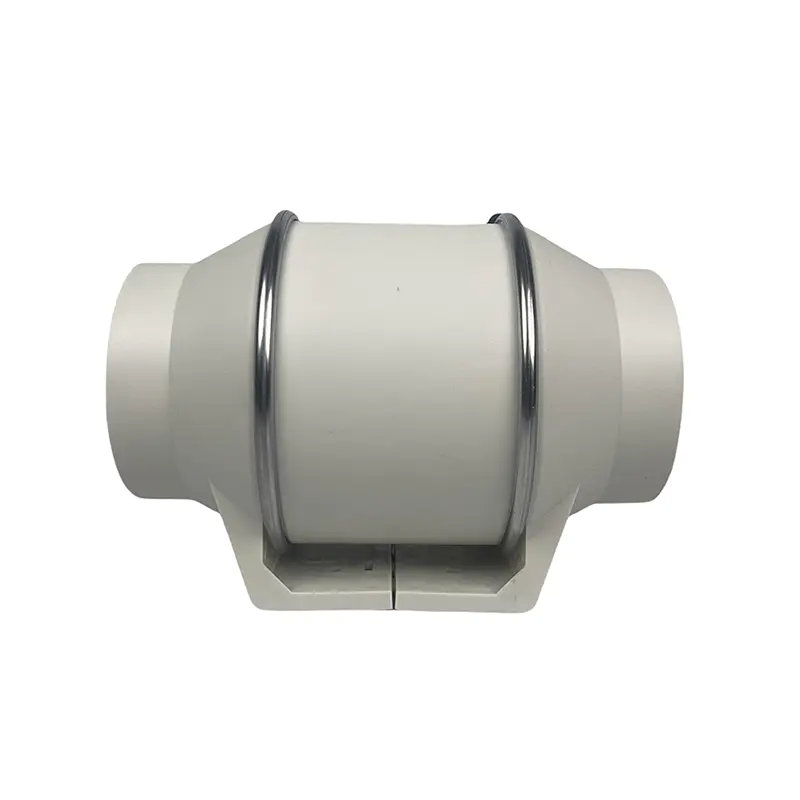

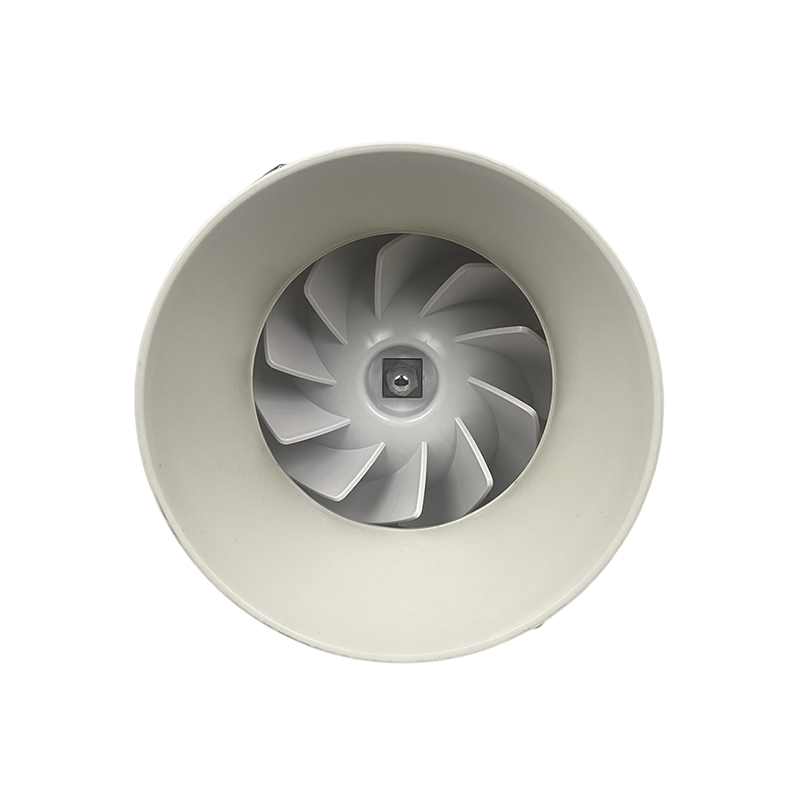

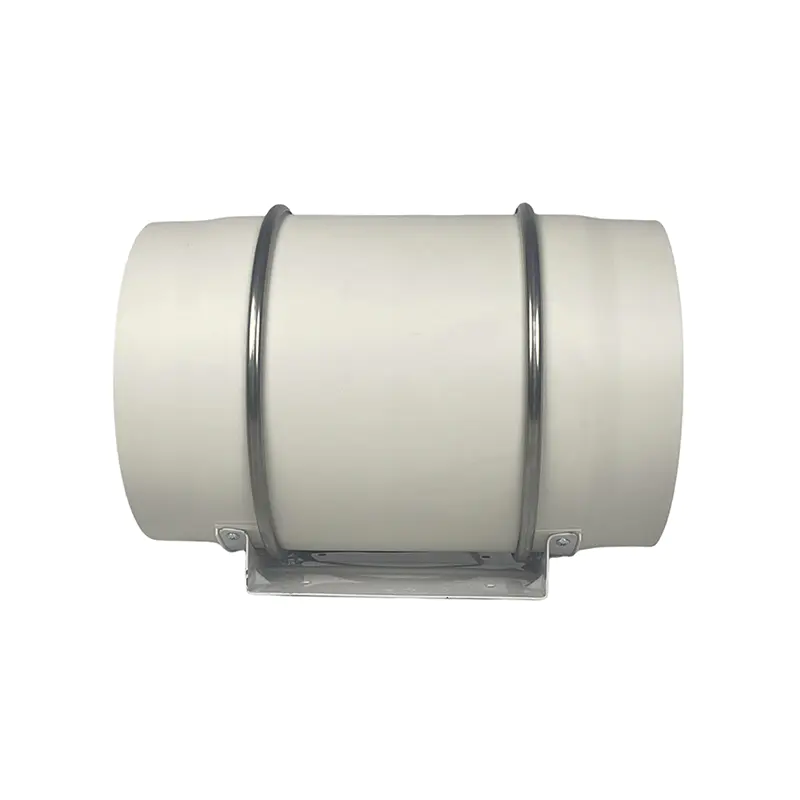

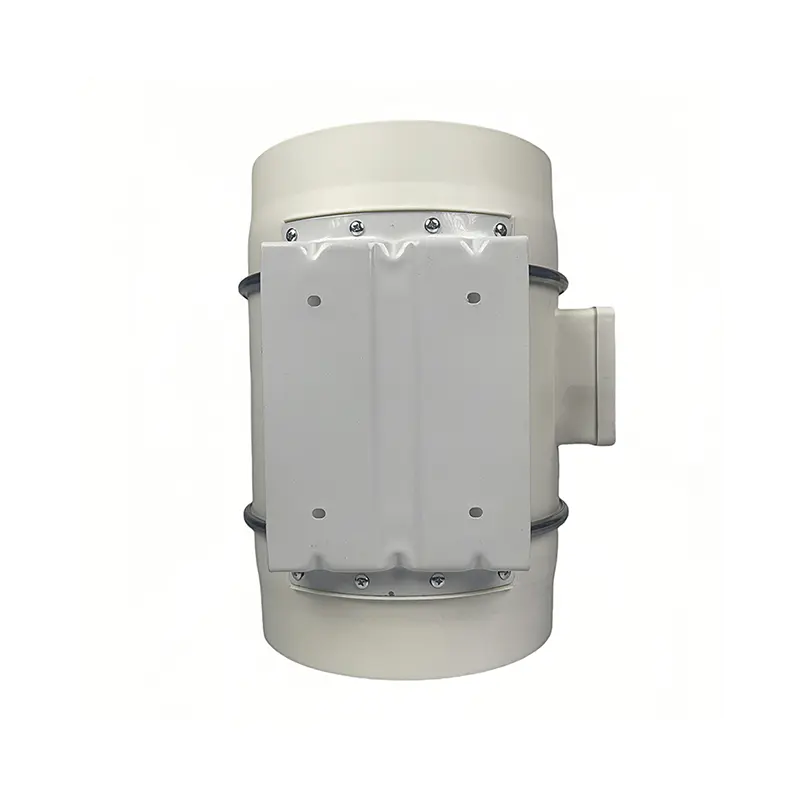

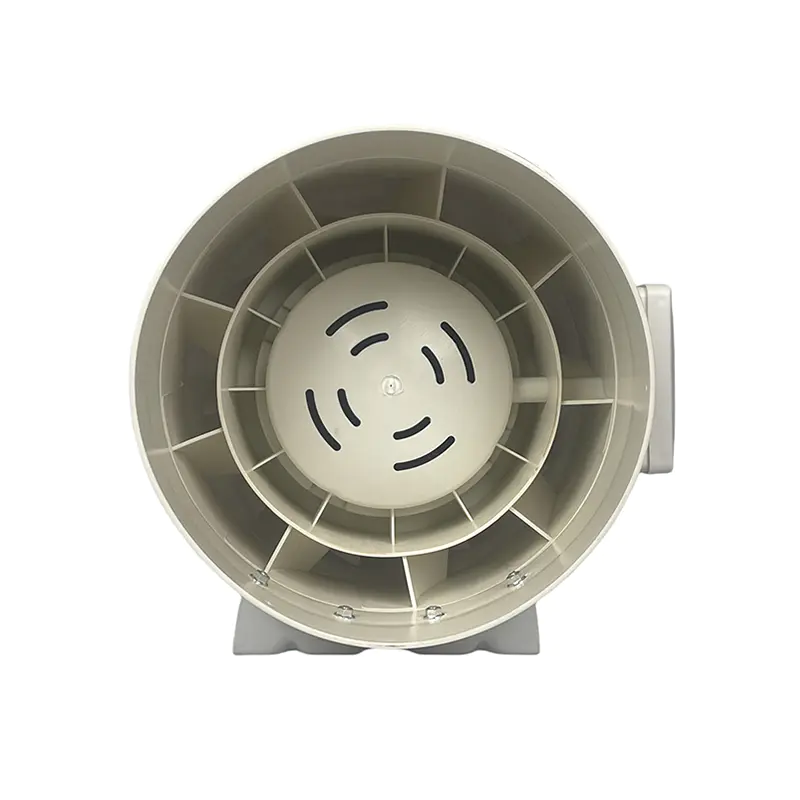

Duct Fan

This Airflow ventilation kit features a modular design, delivering exceptional reliability and powerful performance. Its modular construction ensures straightforward installation and hassle-free maintenance. Each unit comes complete with a mounting bracket for quick and secure attachment to wooden joists and paneling.

More compact than traditional inline centrifugal fans, these units fit conveniently in loft spaces or service shafts. Specifically engineered for residential applications requiring remote extraction, the product line is perfect for bathrooms, toilets, and en-suite installations.

PREV：DUF-A05 Ventilation Silent Inline Duct FanNEXT：No next article
Contact Us

Description

Application Scenarios

Model Power Noise Rated power Air volume Rotate speed NW Product size Power cord Outlet diameter
BXF-75 220V/50Hz ≤55db 30W 150m³/h 2750r/min 1.12kg 230*175*155mm The total length is 85cm.
Exposed 80cm		 75mm
BXF-100-1 220V/50Hz ≤59db 48W 290m³/h 2750r/min 1.38kg 250*195*190mm The total length is 85cm.
Exposed 80cm		 100mm
BXF-125 220V/50Hz ≤59db 50W 420m³/h 2400r/min 1.44kg 250*195*190mm The total length is 85cm.
Exposed 80cm		 125mm
BXF-150 220V/50Hz ≤59db 51W 600m³/h 2000r/min 2.02kg 305*225*215mm The total length is 85cm.
Exposed 80cm		 150mm
BXF-200 220V/50Hz ≤65db 120W 1200m³/h 2100r/min 2.84kg 300*245*260mm The total length is 85cm.
Exposed 80cm		 200mm
BXF-250 220V/50Hz ≤75db 200W 1800m³/h 2000r/min 5kg 377*295*280mm The total length is 85cm.
Exposed 80cm		 250mm
BXF-315 220V/50Hz ≤75db 320W 2400m³/h 2400r/min 7.14kg 450*380*355mm The total length is 85cm.
Exposed 80cm		 300mm

  • Hospital

    Hospital

  • Public Toilet

    Public Toilet

  • Office

    Office

  • House

    House

  • Warehouse

    Warehouse

  • Factory

    Factory
