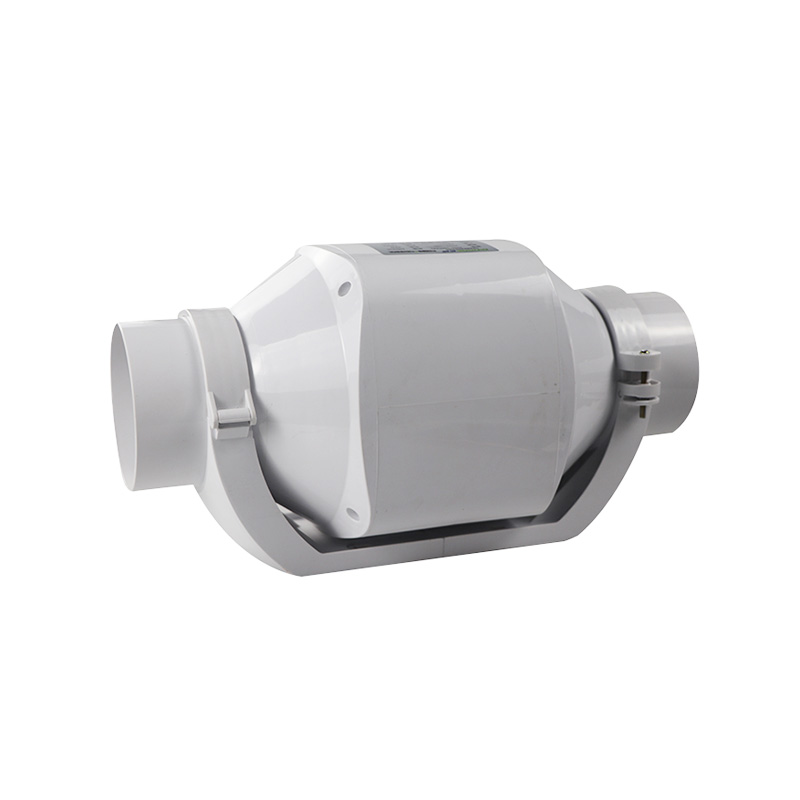

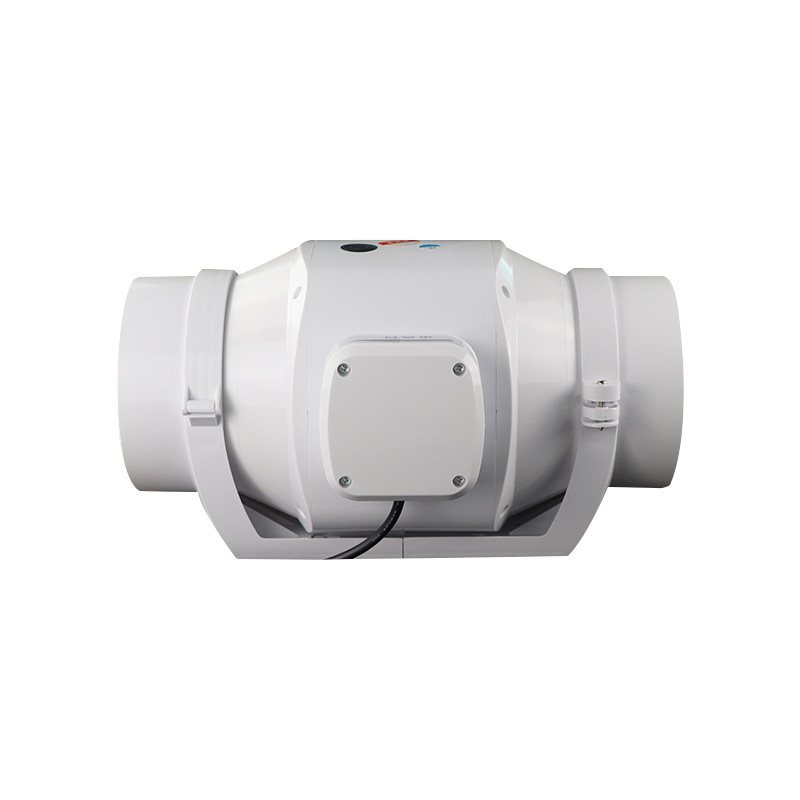

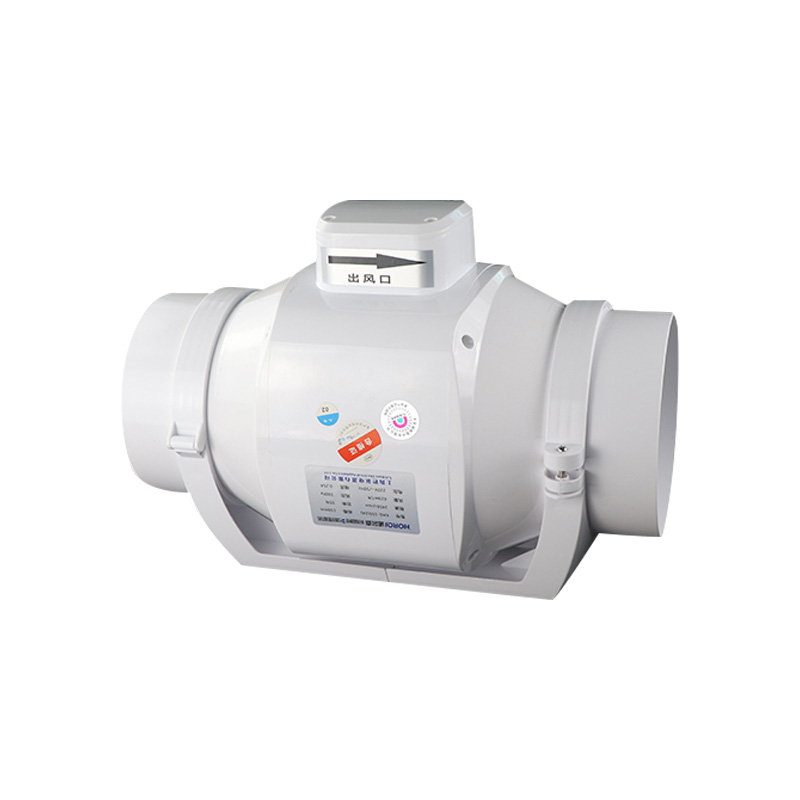

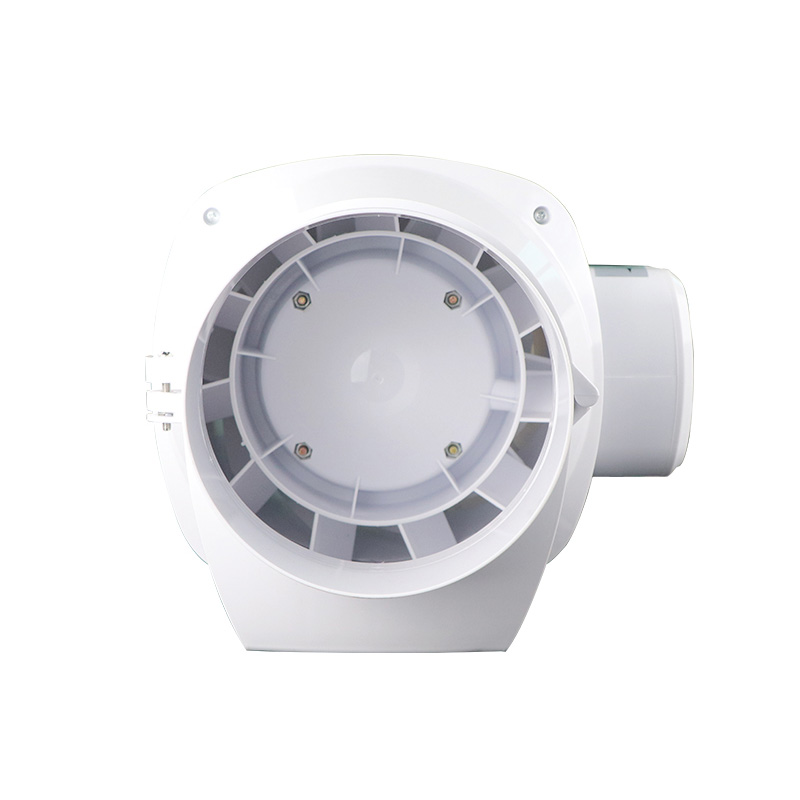

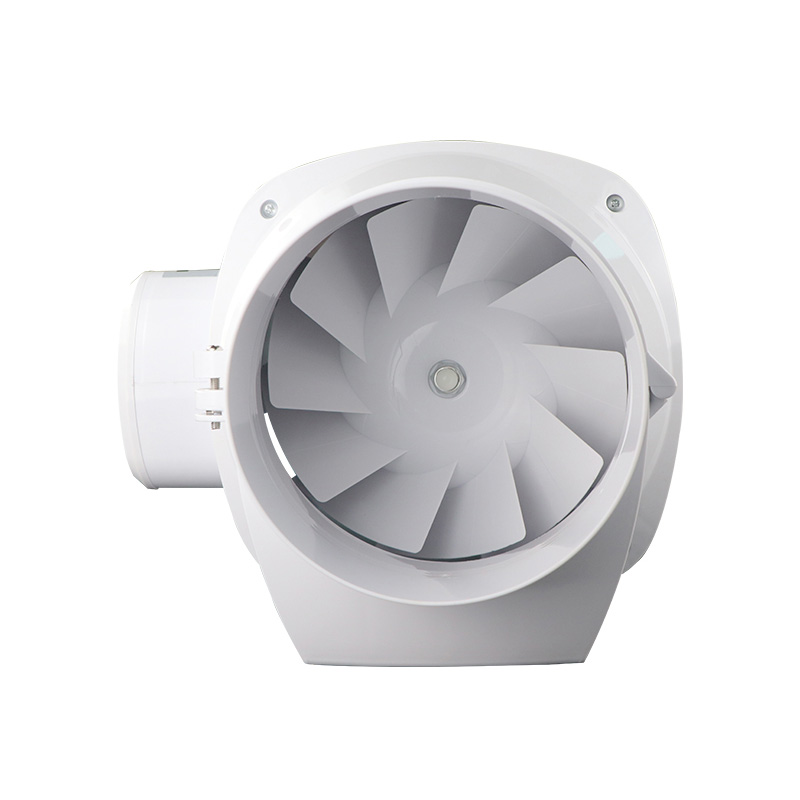

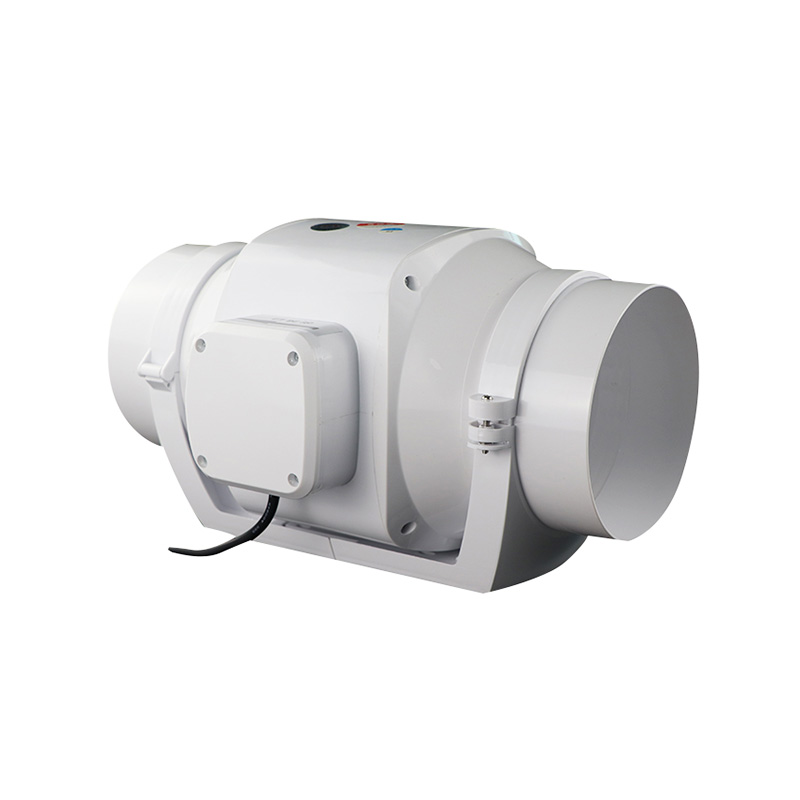

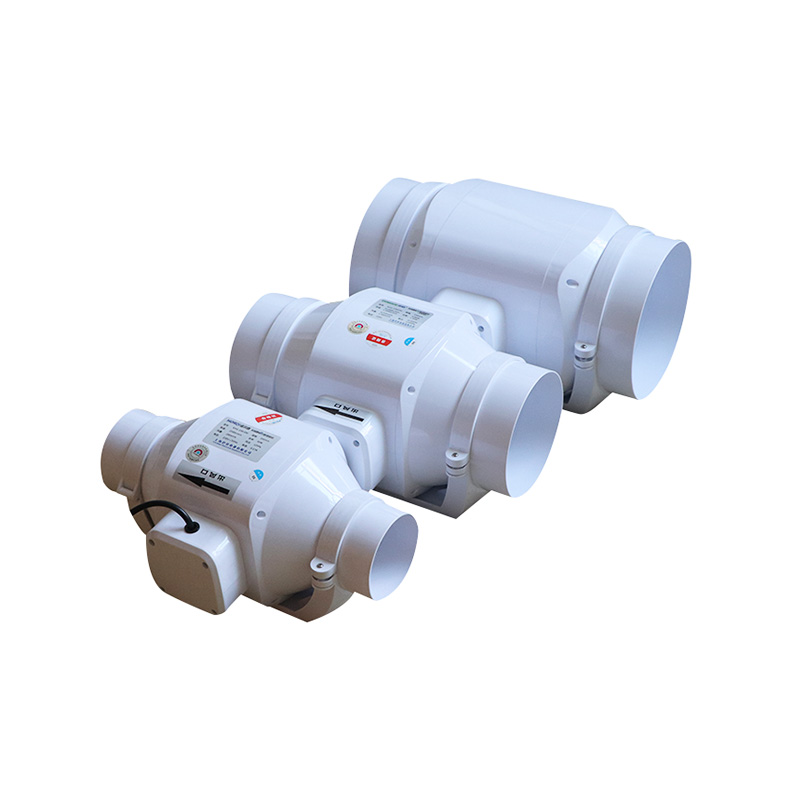

DUF-A01 Speed Adjustable Ventilation Duct Fan

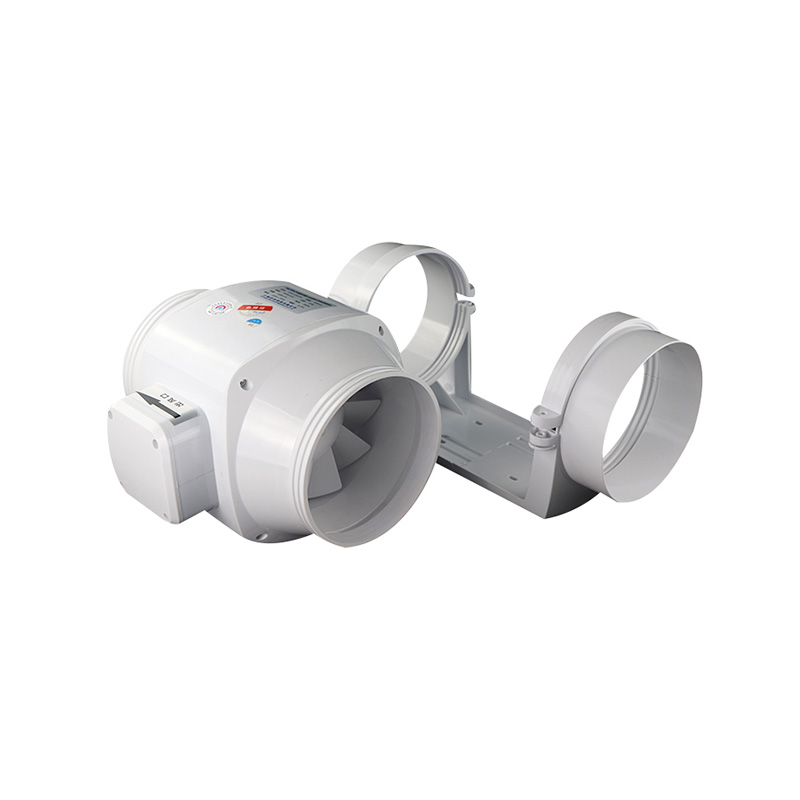

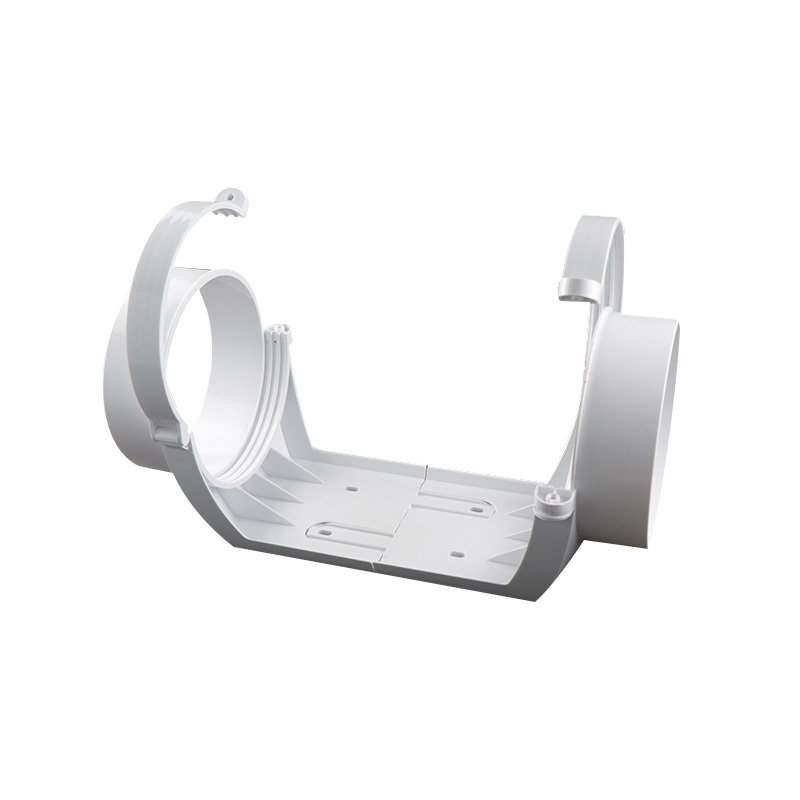

The DUF-A01 Speed Adjustable Ventilation Duct Fan is designed for home ventilation systems. Its unique feature is that the two duct brackets of the exhaust fan can be easily removed and installed in the ducts of the ventilation system to bring continuous fresh air into the room. The fan is not only suitable for home ventilation systems but can also be used directly in small spaces such as greenhouses, hydroponic grow rooms, and workbenches, as well as environments such as basements and 3D laser printers.
By adopting a highly efficient ventilation design, this series of fans not only accelerates the heating and cooling process of a room but also effectively reduces humidity and temperature. It is highly acclaimed for its quiet ventilation in scenarios such as hydroponic grow rooms, grow tents, attics and basements, and kitchens. The solution for users is to circulate fresh air and ensure that the air in their environment is always fresh.
PREV：No previous articleNEXT：DUF-A02 Duct Fan With Temperature Humidity Controller
Contact Us

Description

Application Scenarios

Specifications Gear Size Outlet Size Voltage Power Airflow Speed Packaging Volume G.W. N.W.
(mm) (mm) (mm) (V/Hz) (W) (m/h) (㎡） (Unit/box） (m³) (kg/pcs） (kg/pcs）
4" Single speed 360*205*180 φ100 220/50 48 290 2750 1*6 0.109 16.1 14.5
6" Single speed 365*235*200 φ150 220/50 60 620 2450 1*6 0.127 20.5 18.0
8" Single speed 385*255*225 φ200 220/50 120 1120 2100 1*4 0.123 20.0  18.5
4"
360*205*180 φ100 220/50 H:48
L:42		 H:330  L:280 H:2750  L:2450 1*6 0.109 16.1 14.5
6" 365*235*200 φ150 220/50 H:60
L:50		 H:600 L:480 H:2450  L:2000 1*6 0.127 20.5 18.0
8" 385*255*225 φ200 220/50 H:120
L:90		 H:1200 L:900  H:2100  L:1950 1*4 0.123 20.0  18.5
  • Hospital

    Hospital

  • Public Toilet

    Public Toilet

  • Office

    Office

  • House

    House

  • Warehouse

    Warehouse

  • Factory

    Factory
