OEM/ODM DUF-A03 Oblique Flow Mute Duct Fan

Home / Products / Air Movers / Duct Fans / DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan
  • DUF-A03 Oblique Flow Mute Duct Fan

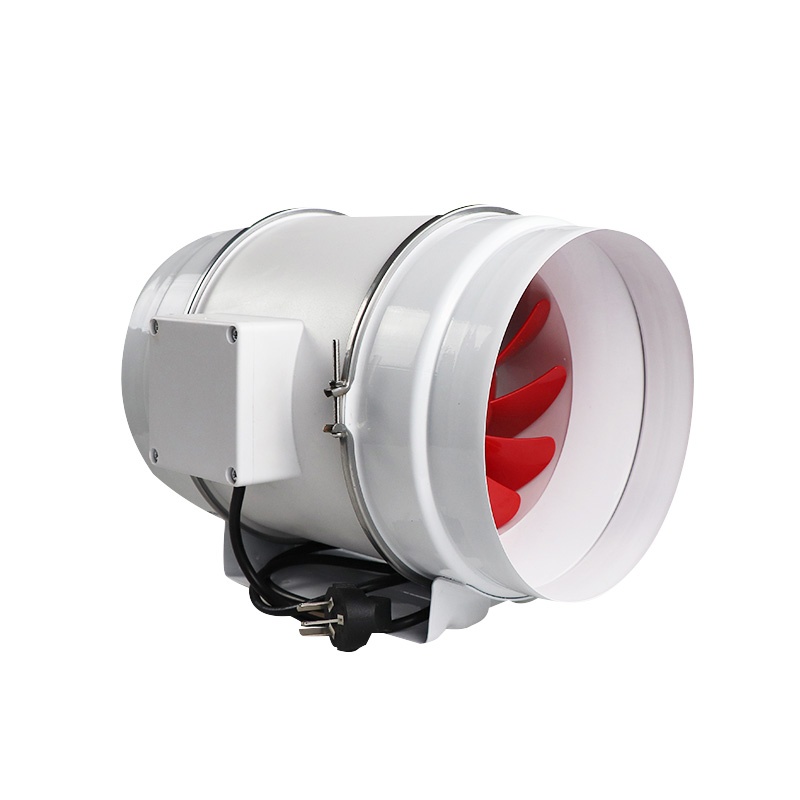

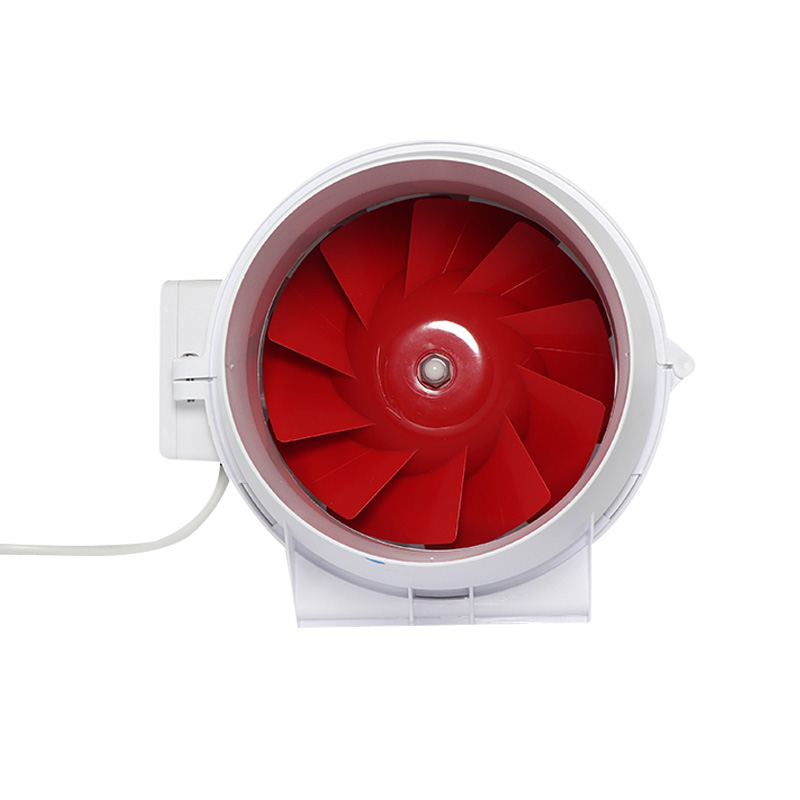

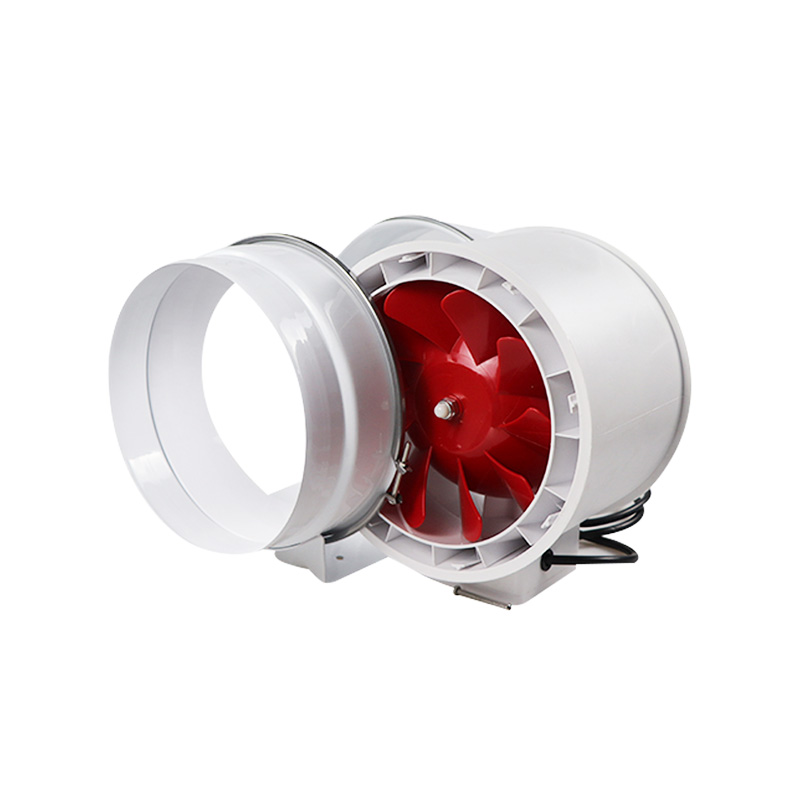

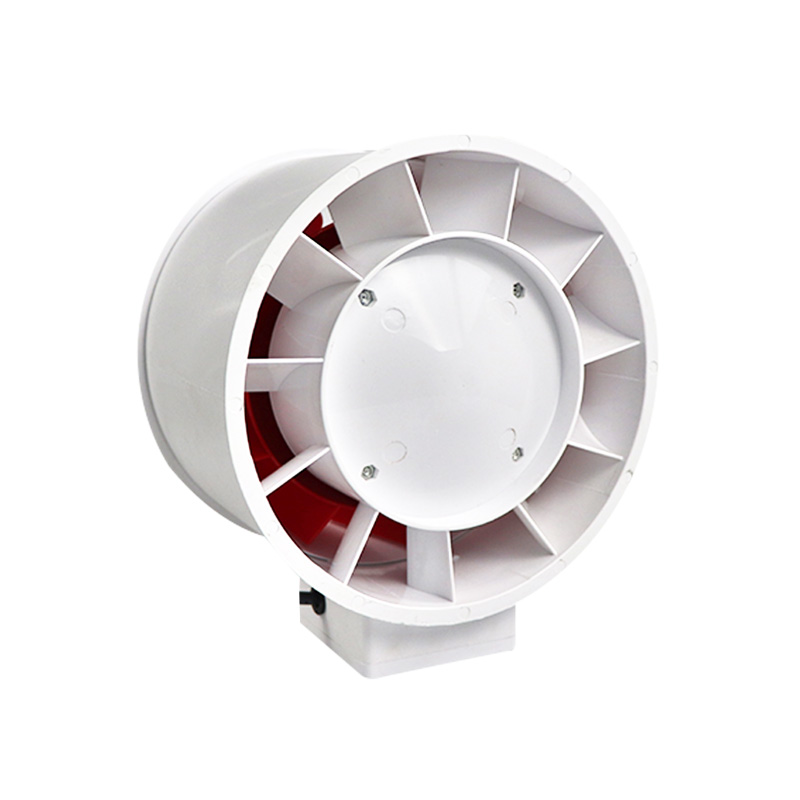

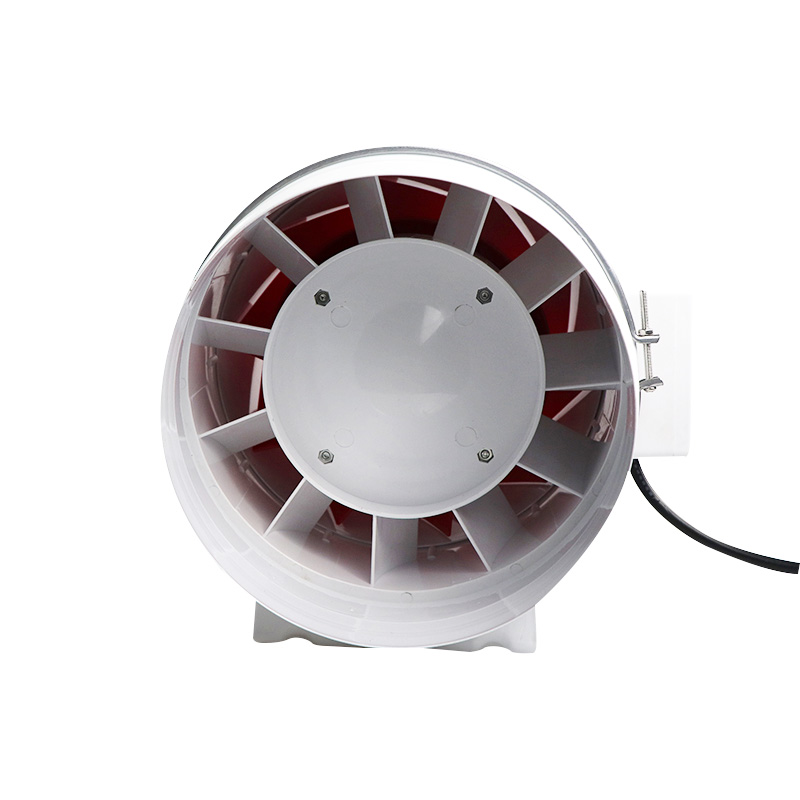

DUF-A03 Oblique Flow Mute Duct Fan

The DUF-A03 Oblique Flow Mute Duct Fan is a high-performance ventilation solution for a wide range of environments. Its unique exhaust fan two duct bracket design allows for easy installation in the ducts of domestic ventilation systems, as well as direct use in small spaces in application scenarios such as greenhouses, hydroponic grow rooms, workbenches, basements, and 3D laser printers.
This feature-rich range of fans is designed to circulate fresh air, improve room heating/cooling efficiency, reduce humidity, and lower temperatures. Particularly suitable for quiet ventilated hydroponic grow rooms, grow tents, attics, basements, and kitchens where fine ventilation is required.
PREV：DUF-A02 Duct Fan With Temperature Humidity ControllerNEXT：DUF-A04 Low Noise Axial Duct Fan
Contact Us

Description

Application Scenarios

Specifications Gear Size Outlet Size Voltage Power Airflow Speed Packaging Volume G.W. N.W.
(mm) (mm) (mm) (V/Hz) (W) (m/h) (㎡） (Unit/box） (m³) (kg/pcs） (kg/pcs）
4" Single speed 303*176*203 φ100 220/50 48 290 2750 1*6 0.109 13.8 12.5
5" Single speed 303*176*203 φ125 220/50 50 420 2650 1*6 0.109 13.8 12.5
6" Single speed 320*200*227 φ150 220/50 60 620 2450 1*6 0.127 17.3  16.0
8" Single speed 302*217*305 φ200 220/50 120 1120 2100 1*4 0.123 18.3 17.1
6" 320*200*227 φ150 220/50 H:60
L:50		 H:600 L:480 H:2450  L:2000 1*6 0.127 17.3 16.0
8" 302*217*305 φ200 220/50 H:120
L:90		 H:1200  L:900 H:2100  L:1950 1*4 0.123 18.3  17.1
10" 305*295*385 φ250 220/50 H:200  L:160 H:1800  L:1400 H:2000  L:1600 1*1 0.043 7.4 6.9
  • Hospital

    Hospital

  • Public Toilet

    Public Toilet

  • Office

    Office

  • House

    House

  • Warehouse

    Warehouse

  • Factory

    Factory

ABOUT US
18YEARS OF
EXPERIENCE
About Us

Coming From China, Marketing To The World.

Zhejiang Baosheng Electric Co., Ltd. is China DUF-A03 Oblique Flow Mute Duct Fan Suppliers and OEM/ODM DUF-A03 Oblique Flow Mute Duct Fan Factory.Our company is a self-export enterprise specializing in the production of industrial heaters, heaters, air coolers, dehumidifiers, etc. Products are exported to the United Kingdom, France, Switzerland, Norway, Denmark, Finland, Russia, Spain, Spain, the Middle East and other countries. Since its establishment, Shaoxing Baosheng Intelligent Electric Appliance Co., Ltd. has developed into a one-stop assembly line production integrating new product development, stamping and spraying assembly through continuous efforts and exploration.
